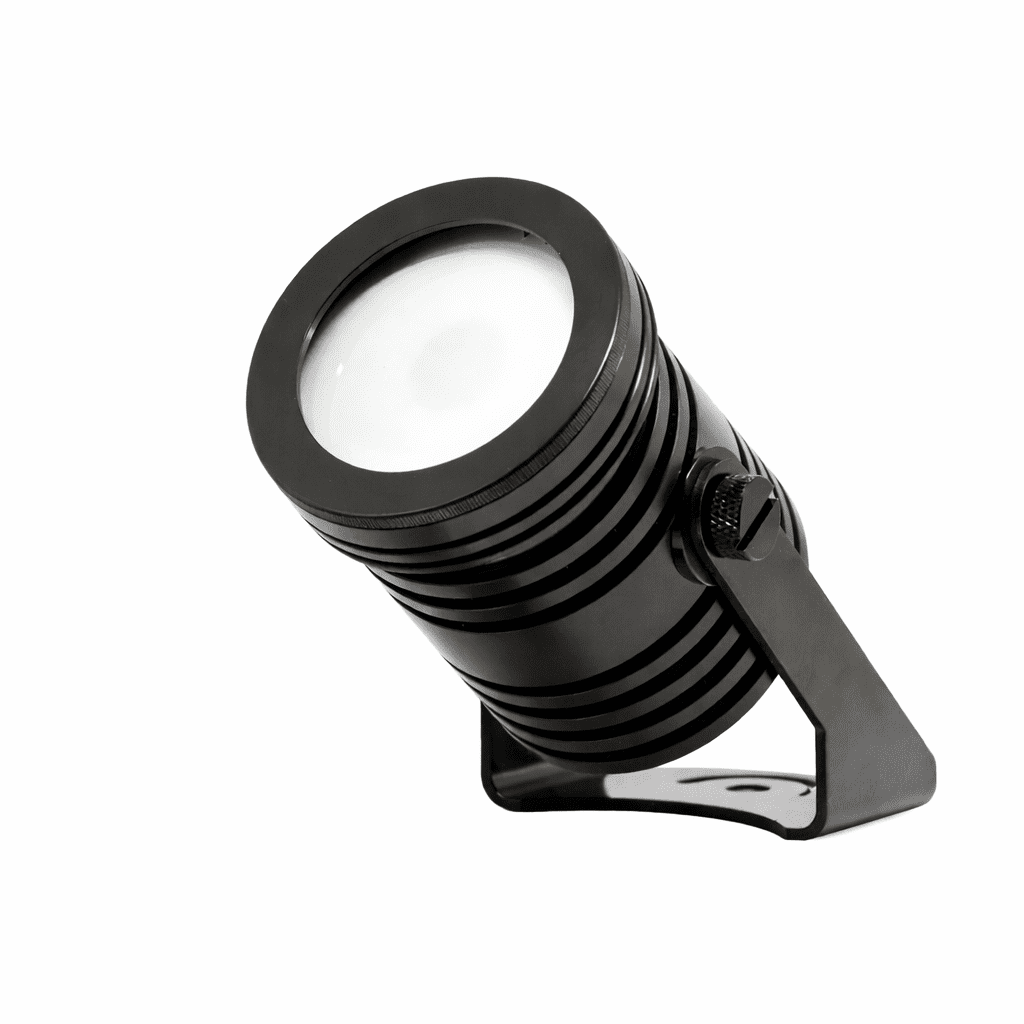

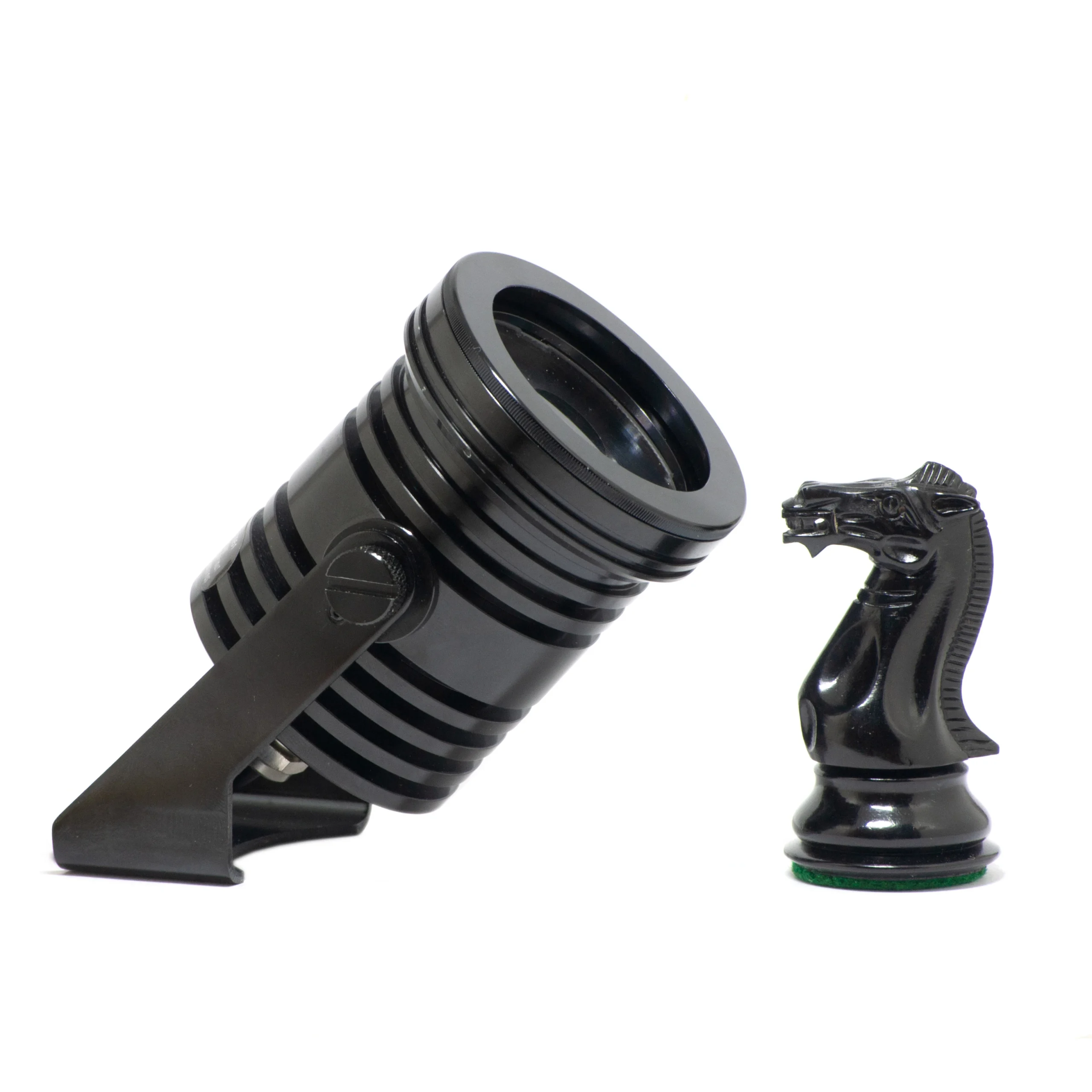

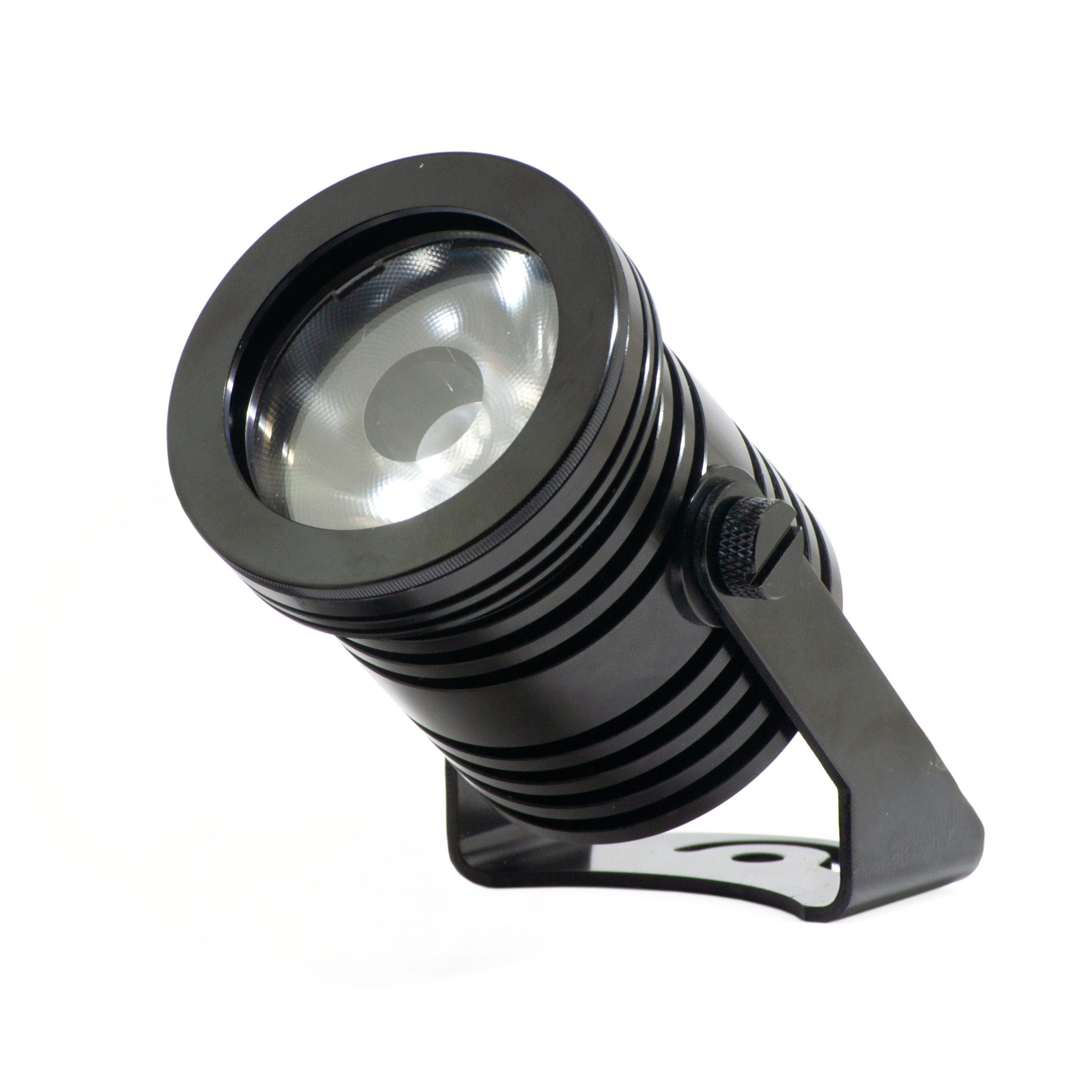

Gantom One UP

7.5W RGBW DMX Pinspot

APPLICATIONS

Description

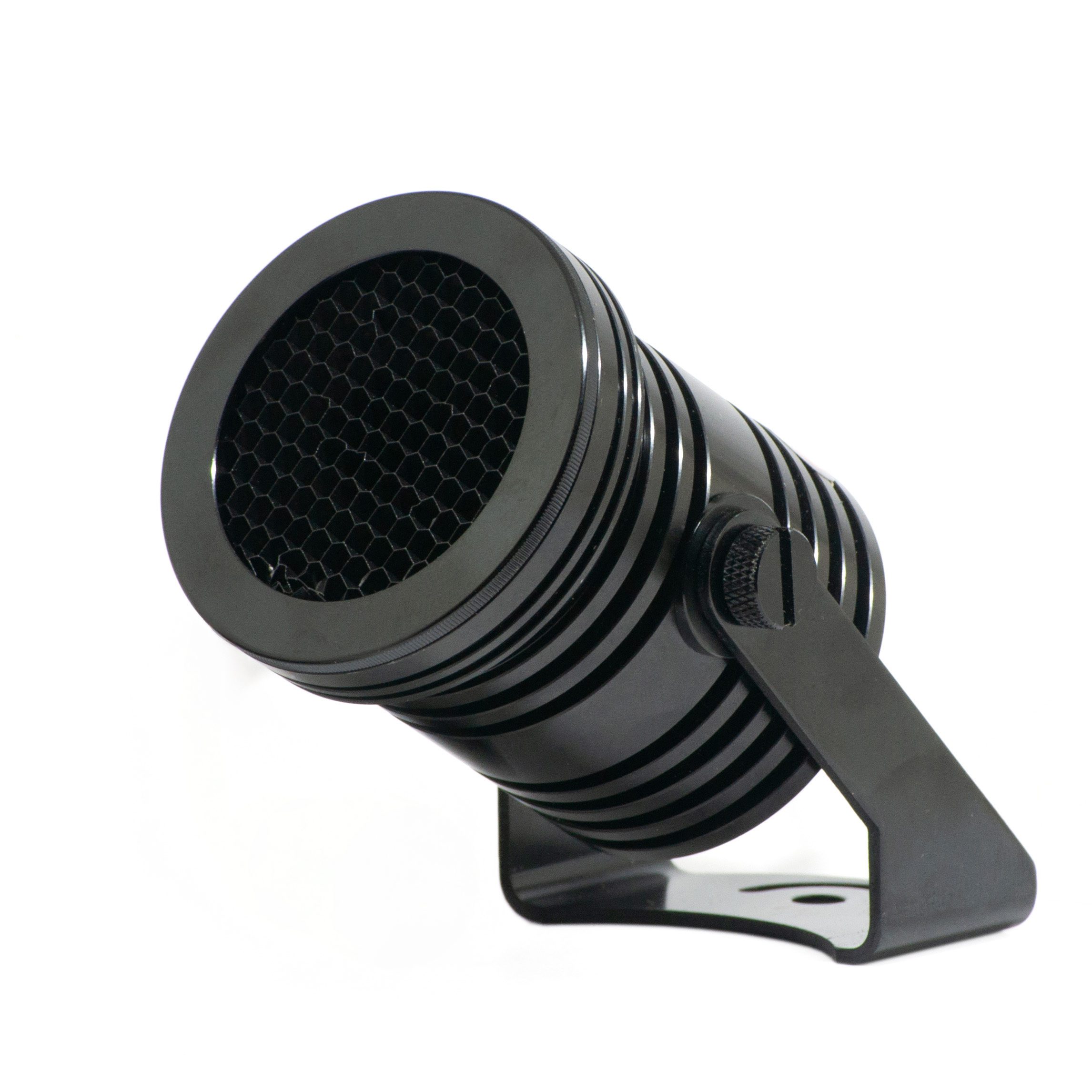

Introducing the new Gantom One Up, the ultimate solution for lighting designers who want to pack a powerful punch in a small package. Building off the success of the Gantom One, the One Up brings four-color output to this LED pin spot and delivers a tight and punchy beam that produces homogeneous color mixing, even at close distances. Featuring a native 4.5 degree beam angle, the Gantom One Up includes 4 diffusion filters, hex louver, and optional top hat, half hat, and angled cowlings for easy control over the beam. Its native DMX control and balanced dimming curve make it perfect for even the most demanding of lighting designers.

Whether you’re illuminating a small space or a large venue, the Gantom One Up has everything you need to create stunning lighting designs.

Product Details

Product Model

GC278B

Gantom ONE UP – RJ45

Physical

Material	Black Anodized Aluminum
IP rating	IP65 IP67 – With FA47 Installed
Weight	308 grams (10.86 oz)

Electrical

Voltage	12-24V DC
Power	7.5W
Dimming	DMX
Connector	RJ45

Thermal

Ambient operating temperature	0–50° C (32–122° F)
Cooling method	Passive

Certifications

USA / Canada	UL
Europe	CE, RoHS

DMX

Channel footprint	4
Addressing	DarkBox Programmer
Lowest dimming	0.05%

DMX Mapping

RGBW: CH. 1	Red Intensity (0%–100%)
RGBW: CH. 2	Green Intensity (0%–100%)
RGBW: CH. 3	Blue Intensity (0%–100%)
RGBW: CH. 4	White Intensity (0%–100%)
