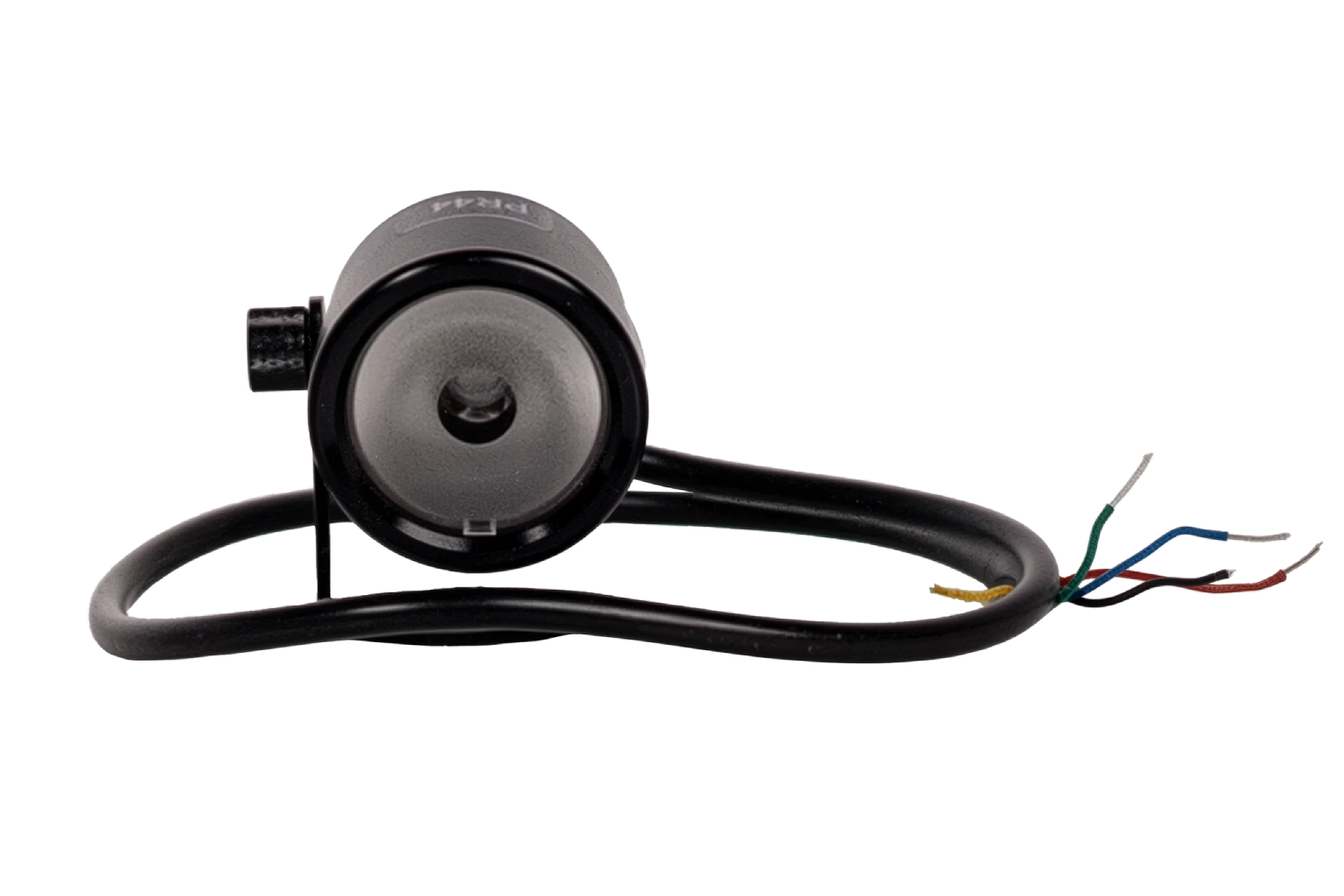

Precision CP-7
3W RGB DMX Spotlight
APPLICATIONS
- Themed entertainment
- Dark rides
- Restaurants
- Museums
- Retail
- Theater and stage
- Trade shows
Description
The Precision CP-7 offers precise RGB control with its 7 channel DMX profile and features smooth dimming, variable strobing, color macros, and flicker effects. This fixture comes bare wire and includes adapters for power and programming allowing for flexibility in permanent and seasonal installations. With minimal maintenance required and over 50,000-hour lamp life expectancy, this fixture will hold strong through your installations year after year.
Product Details
| SKU | PR44 |
| DMX Channels | 7 |

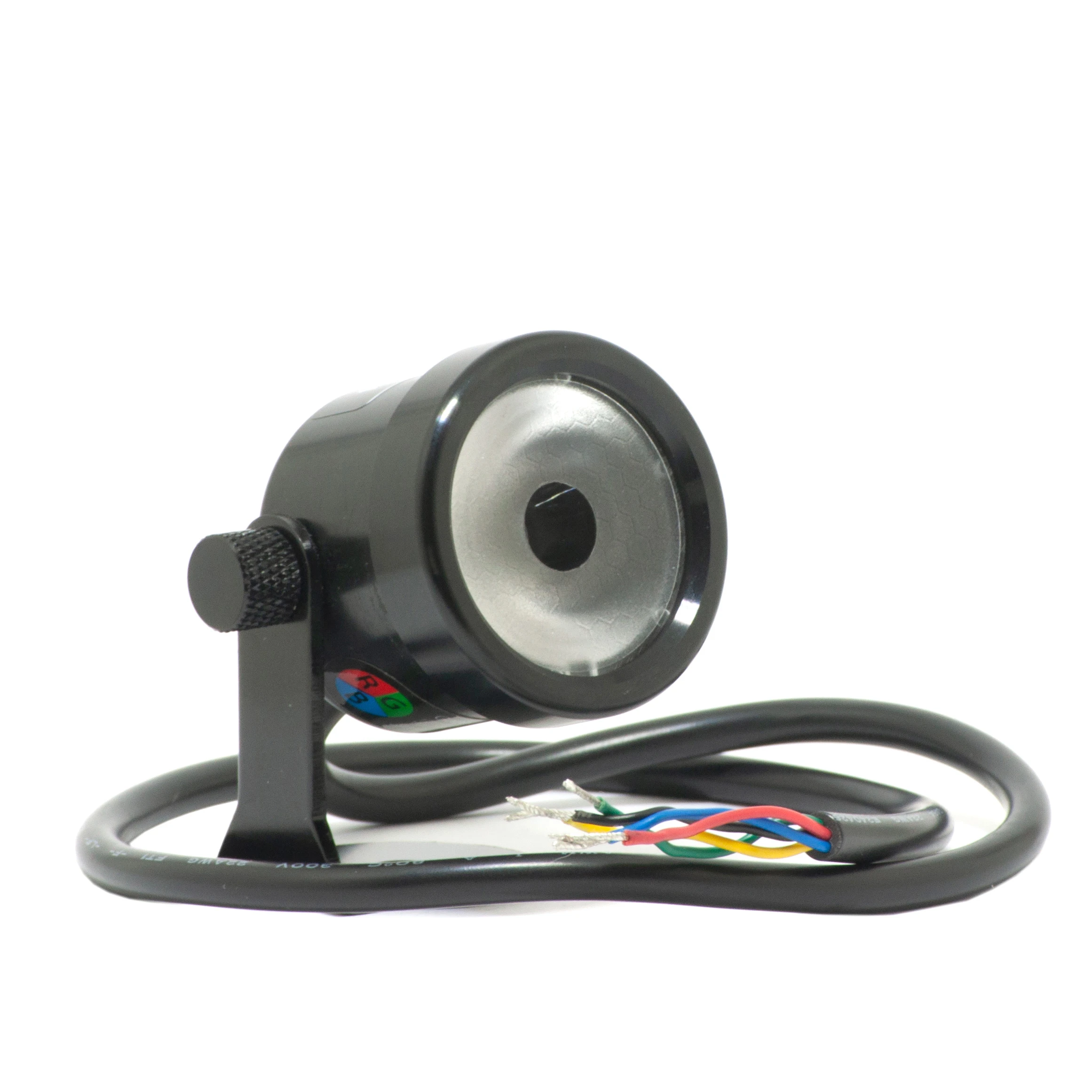

| Cable Options | Bare Wire (power and data screw terminal adaptors included) |
| Availability | Stocked product, usually ships in 1 business day. |
7 CH | LEVEL | DESCRIPTION |
Ch 1 | 000 <–> 255 | Red Intensity (0% – 100%) |
Ch 2 | 000 <–> 255 | Green Intensity (0% – 100%) |
Ch 3 | 000 <–> 255 | Blue Intensity (0% – 100%) |
Ch 4 | 000 <–> 031 032 <–> 032 033 <–> 096 097 <–> 097 098 <–> 159 160 <–> 160 161 <–> 223 224 <–> 224 225 <–> 255 | Color Macro – Overides Ch 1-3 No Function Red 100% Variable Red to Blue Color Shift Blue 100% Variable Blue to Green Color Shift Green 100% Variable Green to Red Color Shift Red 100% Variable Red to White Color Shift |
Ch 5 | 000 <–> 015 | Strobe / Effect Speed No Function Speed Slow –> Fast |
Ch 6 | 000 <–> 031 032 <–> 071 072 <–> 111 112 <–> 150 151 <–> 190 191 <–> 230 231 <–> 249 250 <–> 250 251 <–> 255 | Strobe / Color Effects Ch 1-4 For Color, Ch 5 fFor Speed No Function Ramp Up Strobe Ramp Down Strobe Ramp Up / Ramp Down Strobe Rainbow Color Fade Red, Green, Blue Color Chase 6 Color Chase Flicker (Holds last color from Ch 6) Flicker |
Ch 7 | 000 <–> 255 | Master Dimmer (100% –> 0%) |
| Max wattage: | 3.3W |
| Input voltage: | 12VDC |
| Current draw: | 278mA @ 12VDC |
| Power supply: | for use with class 2 regulated switching power supply (PSU sold separately) |
| Beam angle: | 18° Soft Edge Beam |
| Ingress Protection: | IP60 – Dry Location Only |
| Certifications: | UL and CE |
Precision Z Flood FEATURES
-
RGB color-mixing spotlight
-
Control via DMX512 or Gantom Programmer interface
-
Built-in functions: flicker, strobe, blink, fade, color change, master dimming, color macro
-
Internal constant current driver gives highly efficient and consistent output
-

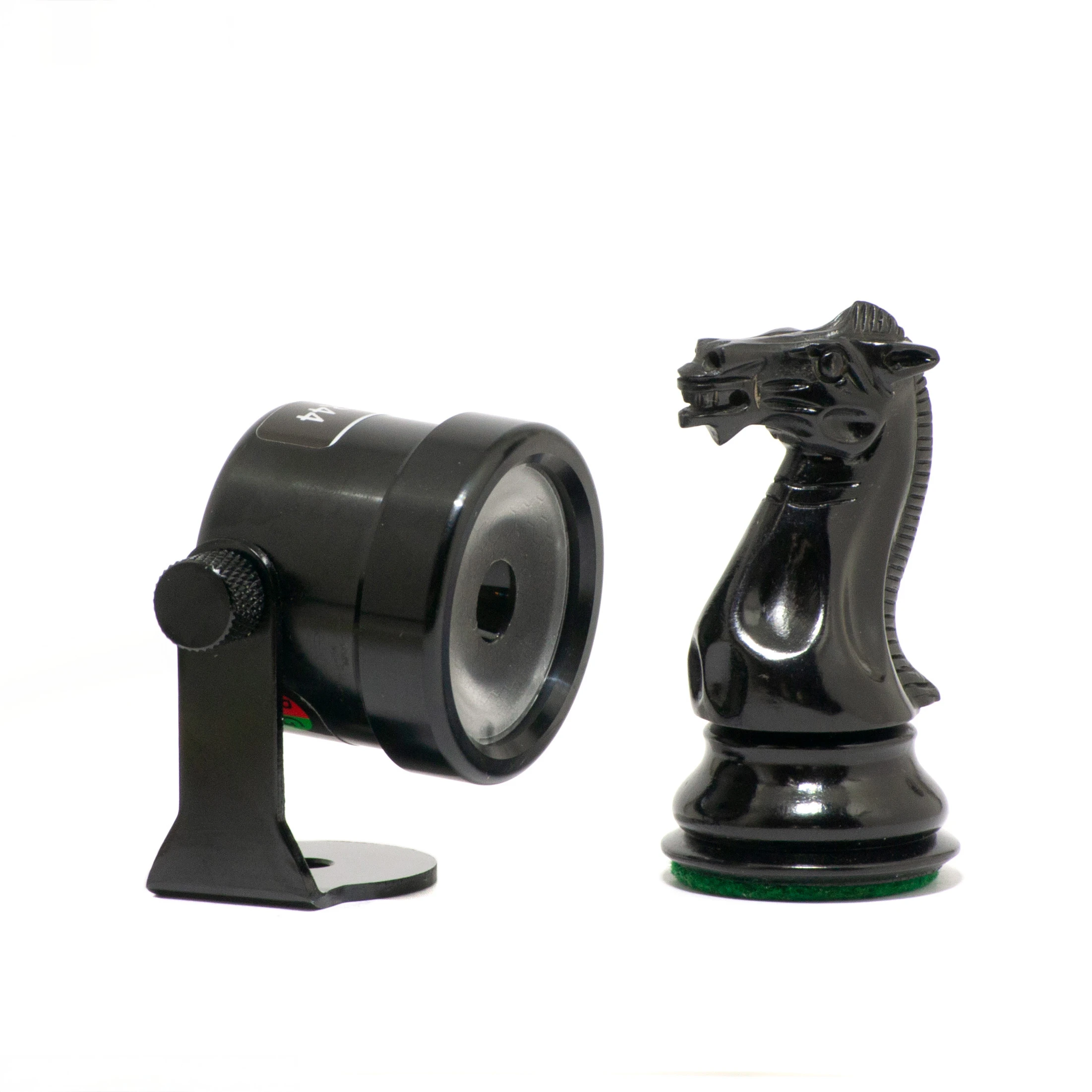

Compact form factor and included yoke allow for easy and discrete installation.
